BEGINNER · NETWORK 101 · LESSON 05 · FINAL LESSON

Network Redundancy in a Data Center

Network redundancy provides alternate connectivity when a NIC, link, switch, or network path fails—but having two connections does not automatically mean the paths are truly independent.

REDUNDANCYJUST HAVING TWO THINGS

If one path fails, does an adequate independent path remain?

Beginner · Network 101Lesson 05 · Final lessonAbout 10 minutes

01 / MORE THAN ONE SERVER CONNECTION

Dual NICs and dual switches

A server may have multiple network interface cards (NICs) or ports. A design may connect NIC A toward Switch A and NIC B toward Switch B, so a failure on one attachment does not necessarily remove the other.

The two links might connect to separate leaf switches. Connecting both links to one switch can leave that switch as a shared failure point. But two NICs still do not automatically mean redundant service: upstream paths, configuration, independence, and capacity matter too.

In NICs, Ethernet, and fiber, we followed the physical server connection. Network switchesand ToR switches are the next dependencies.

DataCenterTwin Nerd Girl points to separate blue and yellow network cable routes above server racks.
Separate server-facing links can begin two paths. Follow both upstream before deciding how independent they really are.

TRACE BOTH ATTACHMENTS

A dual-path starting point

This simplified example shows two server attachments reaching separate leaves and continuing toward separate fabric paths.

Two possible server paths, shown separately so each dependency can be traced
SERVER
  1. NIC AServer attachment A
  2. LEAF ASwitch A
  3. FABRIC PATH AUpstream route
  1. NIC BServer attachment B
  2. LEAF BSwitch B
  3. FABRIC PATH BUpstream route

Two branches are a starting design question. They do not prove there are two independent end-to-end paths.

FOUR CONDITIONS TO CHECK

What makes an alternate path useful?

A useful alternate path must survive the intended failure and still support the service that matters.

  1. AvailabilityThe alternate path still exists after the failure.
  2. IndependenceThe same failure does not remove both paths.
  3. CapacityThe surviving path can carry the traffic the design must retain.
  4. Functional connectivityForwarding and configuration still let the required service be reached.

02 / MULTIPLE FABRIC ROUTES

A spine-leaf fabric can offer another route

In a spine-leaf fabric, Leaf A may reach Leaf B through Spine 1 or Spine 2. If one spine fails, traffic may still be able to use another spine—but only if topology, forwarding, configuration, and remaining capacity support that surviving route.

That is a possible path, not a universal promise of impact-free failover.

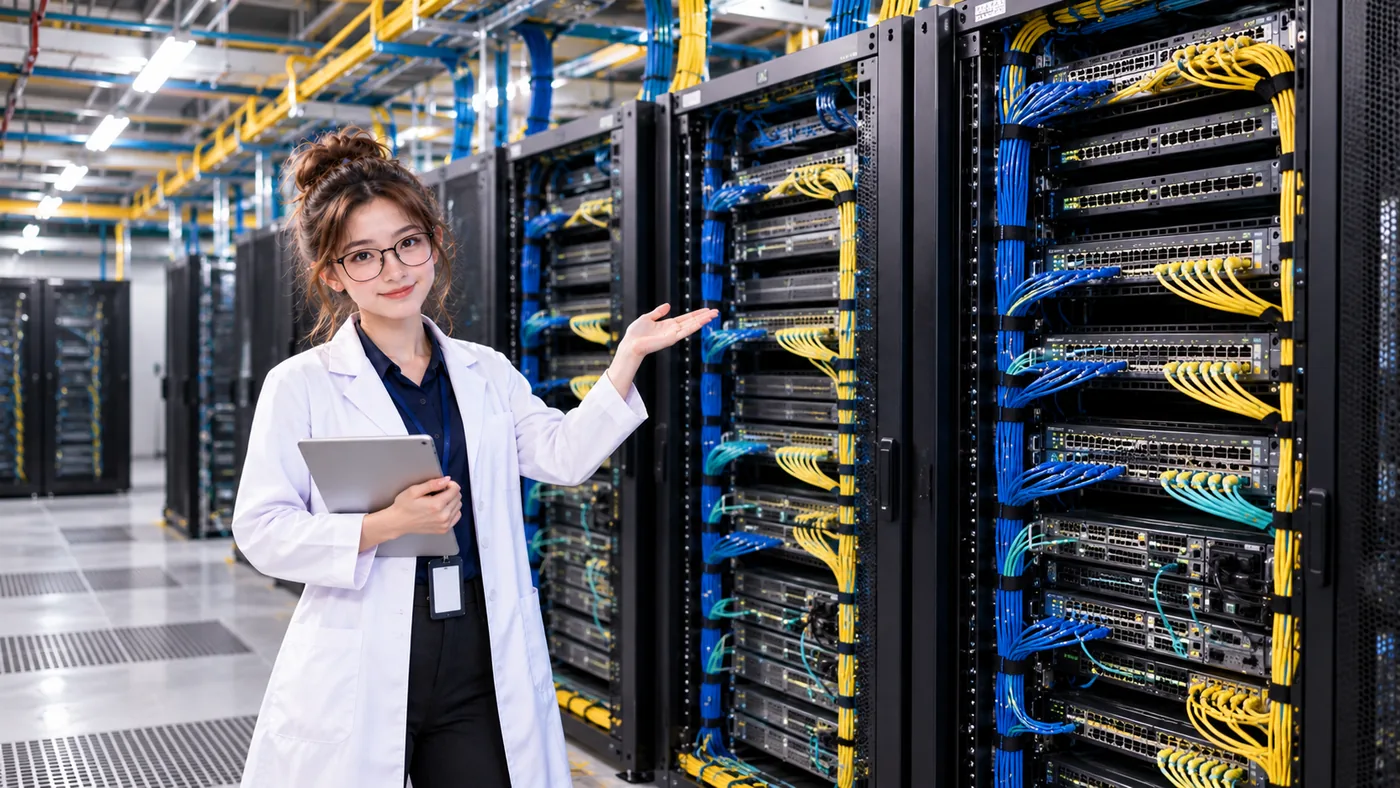

DataCenterTwin Nerd Girl presents two network racks with multiple blue and yellow cabling paths.
A physical view of multiple network links. The connection matrix below shows the logical paths explicitly.

TRACE THE SURVIVING PATH

What if Spine 1 fails?

In this simplified fabric, both leaves connect to both spines. The status labels—not color alone—show which route is unavailable.

Possible leaf-to-leaf paths through two spines
Simplified connections in this example
LeafSpine 1Spine 2
Leaf ASpine 1: ConnectedSpine 2: Connected
Leaf BSpine 1: ConnectedSpine 2: Connected
SPINE 1 — FAILEDLeaf A → Spine 1 → Leaf B · unavailable in this example
SPINE 2 — AVAILABLELeaf A → Spine 2 → Leaf B · a possible surviving route

Traffic may continue through Spine 2 if forwarding, configuration, topology, and surviving capacity allow it. The actual outcome depends on the implementation.

A USEFUL DISTINCTION

Device redundancy vs. path redundancy

Device redundancy

“There are two switches.”

Counts equipment, but does not tell us what else the devices share.

Path redundancy

“There are alternate end-to-end paths.”

Asks whether the required connectivity can survive the intended failure.

Two switches may still share a cable route, patching point, upstream device, room, or power dependency.

03 / LOOK FOR WHAT BOTH PATHS SHARE

A hidden dependency can defeat two apparent paths

Two links can look separate while passing through one shared cable tray, conduit, patching location, upstream device, room, power source, or other common element. If that shared dependency fails, both apparent paths may be affected.

Shared infrastructure is not automatically unacceptable. Identify it and understand its failure impact. This is similar to the shared-path question in A/B Power & Redundancy.

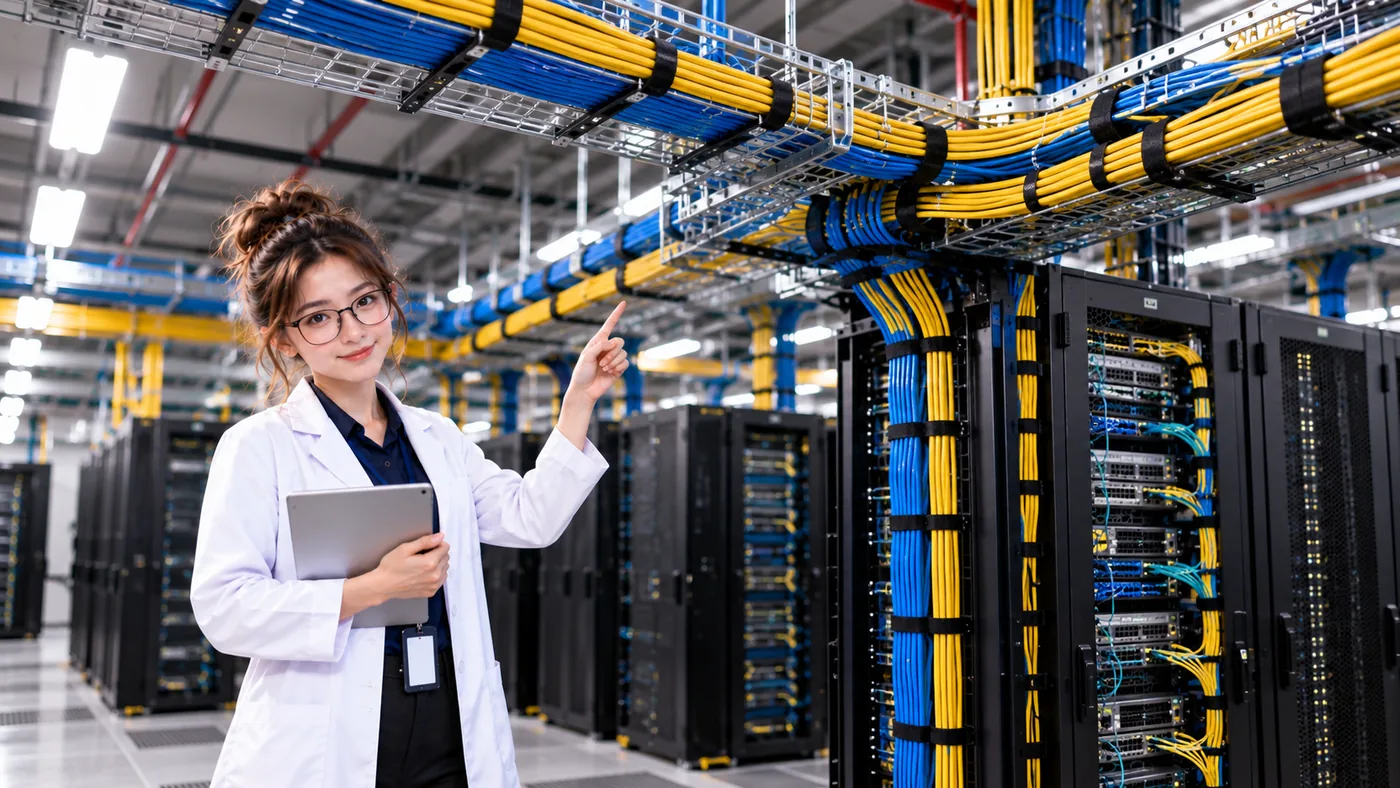

DataCenterTwin Nerd Girl points to network switches and bundled blue and yellow cables routed together in a rack.
Two cable colors or routes in one rack do not reveal every shared dependency. Trace the physical and logical path beyond the frame.
Two apparent paths converge on one shared dependency
PATH ANIC A · Leaf A
PATH BNIC B · Leaf B
SHARED DEPENDENCYFor example: one cable tray or upstream switch
UPSTREAM · REQUIRED SERVICE

If the shared dependency fails, both apparent paths may be affected.

DIVERSITY HAS TWO SIDES

Logical diversity vs. physical diversity

Logical diversity

The network topology or configuration appears to provide more than one path.

Physical diversity

The routes also avoid shared physical dependencies where the design requires that separation.

For example, two logical links routed through the same physical cable tray may be less independent than they appear.

TEST A FAILURE, THEN FOLLOW THE PATH

Four questions to reason through

  1. NIC A failsCan the server still communicate through NIC B?
  2. Leaf A failsDoes the server have another attachment through Leaf B?
  3. Spine 1 failsCan traffic use another spine?
  4. A shared dependency failsDoes that one failure remove both apparent paths?

These scenarios have no universal outcome. The result depends on how the network is built and configured.

THE NETWORK REDUNDANCY CHECKLIST

When something fails, ask:

  1. What failed?
  2. What depends on it?
  3. What alternate path remains?
  4. Is that path actually independent?
  5. Is the path correctly configured and usable?
  6. Does it have enough surviving capacity?
  7. Can the required service still be reached?

RESILIENCE IS A SYSTEM PROPERTY

Redundancy is not an availability guarantee

Redundant hardware and paths can improve resilience; they do not guarantee that an application stays available. Service also depends on compute, power, cooling, storage, software, DNS, databases, external services, configuration, and more.

POWER 101 + NETWORK 101

One systems question across two chapters

Power redundancy

If Power Path A fails, can Power Path B still support the load?

Network redundancy

If Network Path A fails, can Network Path B still reach the required service?

SURVIVING PATH + INDEPENDENCE + SUFFICIENT CAPACITY + REQUIRED SERVICE CONTINUES

For a hands-on example of dependency and capacity reasoning, try the A/B Power Redundancy lab. It tests power paths, not network failures.

THREE THINGS TO REMEMBER

Trace the whole path before trusting the count

  1. Two NICs, cables, or switches do not automatically mean true redundancy.
  2. A useful alternate path must survive the failure and provide enough connectivity and capacity.
  3. Trace the complete path and look for hidden shared dependencies.

NETWORK 101 · COMPLETE

You now understand the basic data-center network path

From an endpoint’s physical connection to the wider fabric, you can now trace where traffic goes and ask what happens if a component disappears.

  1. SERVER
  2. NIC
  3. PHYSICAL LINK
  4. ToR / LEAF
  5. SPINE
  6. LEAF
  7. DESTINATION

What happens when one part fails?

Identify the path → trace dependencies → introduce failure → find the surviving path → check independence → check capacity → verify service reachability.

PUT SYSTEMS THINKING INTO PRACTICE

Practice dependency tracing

The existing A/B Power Redundancy lab lets you test shared dependencies and surviving capacity for power paths. It does not simulate NIC, switch, or network-path failures.
