What Is Top-of-Rack Networking in a Data Center?

Top-of-Rack networking connects servers inside a rack to a nearby network switch, which then connects upstream into the wider data-center network.

Beginner · Network 101Lesson 03About 8 minutes

01 / ONE SWITCH FOR A RACK

Meet the Top-of-Rack switch

A Top-of-Rack (ToR) switch is a network switch deployed at the rack level. Servers in that rack connect their NICs to server-facing ports on the switch. The ToR switch then links those local connections toward the wider network through one or more uplinks.

“Top-of-Rack” describes a common network architecture or deployment pattern. The switch does not have to occupy the highest rack unit. Placing switching near the servers can organize local connections, keep many server-facing cable runs within the rack, and make rack designs repeatable.

ToR is one common approach, not a universal best choice. Facility size, cabling, capacity, operations, and network architecture all affect where switching equipment belongs.

DataCenterTwin Nerd Girl presents connected servers and a rack-level network switch within a row of data center racks.
Server links meet at a rack-level switch; uplinks carry the rack’s connectivity beyond its local equipment.

MANY SERVERS · ONE RACK SWITCH

How one rack connects upstream

Each server uses a NIC and a physical link to reach a server-facing port on the rack switch. Multiple local connections converge at that switch; the switch’s uplink or uplinks then connect toward upstream network equipment.

  1. SERVER 1NIC → server-facing link
  2. SERVER 2NIC → server-facing link
  3. SERVER 3NIC → server-facing link
  4. SERVER 4NIC → server-facing link
RACK / ToR SWITCHConnects local server links
  1. UPLINK(S)From the rack switch
  2. UPSTREAM NETWORKAdditional switching and wider connectivity
A simplified rack: server NIC links connect locally to the ToR switch, whose upstream connections extend the path. Actual rack and uplink counts vary.

02 / TWO LINK ROLES

A server-facing link connects a local endpoint—such as a server NIC—to a ToR switch port. An uplink connects that rack switch toward additional network infrastructure.

“Downlink” and “uplink” describe the link’s place in a topology. They do not mean traffic only travels down or up: network communication can flow in either direction. The number of links and their speeds depend on the design; there is no single bandwidth ratio that applies to every rack.

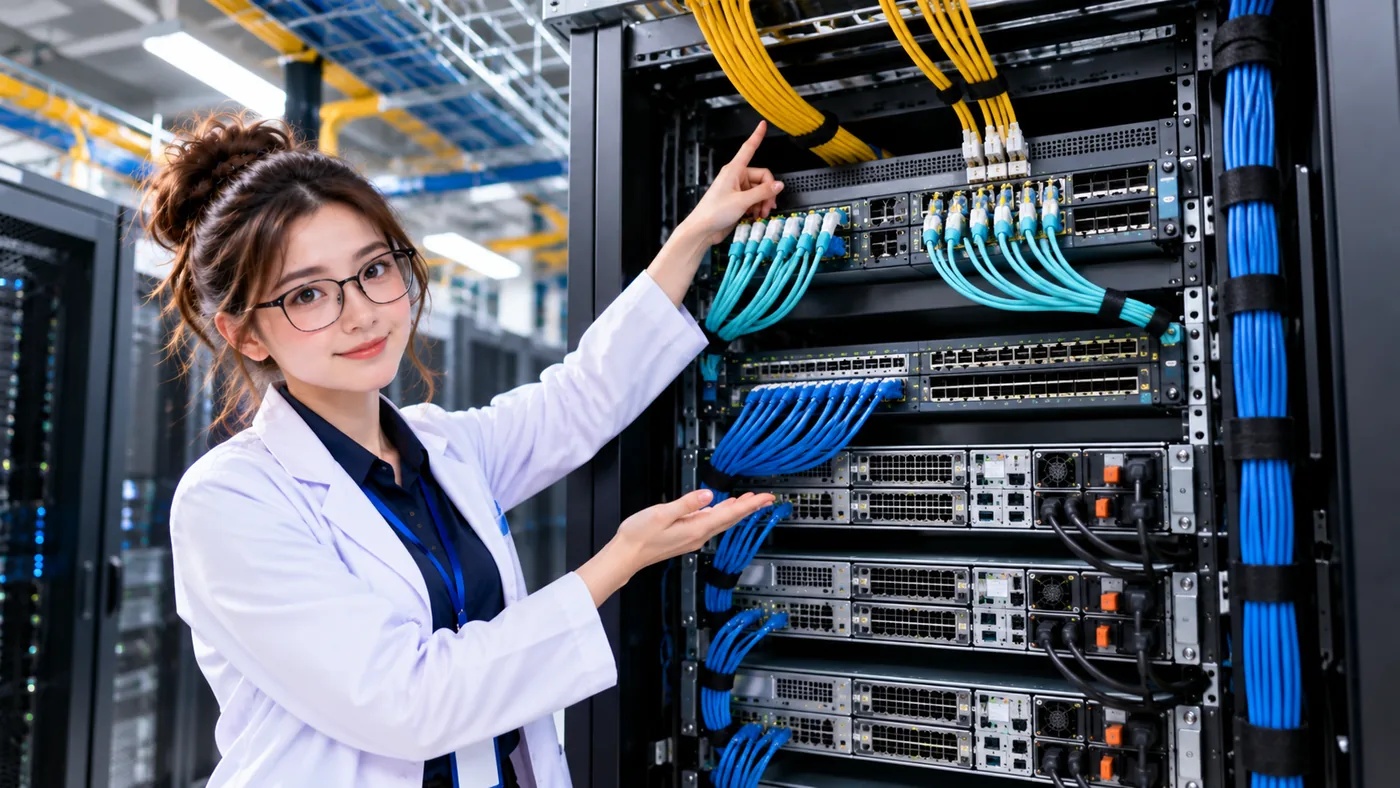

DataCenterTwin Nerd Girl points to turquoise server-facing cables and blue network links connected to equipment in a rack.
Local server-facing connections and upstream cabling can be organized together at the rack, even though they serve different topology roles.

LOCAL CONNECTIONS

Server-facing links / downlinks

  • Connect local servers and endpoints
  • Run from server NICs to ToR switch ports
  • Terminate at the rack switch

UPSTREAM CONNECTIONS

Uplinks

  • Connect the rack switch to other network infrastructure
  • Carry rack connectivity beyond the rack
  • May be one or multiple links, depending on design

03 / FROM ONE RACK TO MANY

Each rack switch needs a path beyond its rack

A data center row can contain many racks, each with its own servers and rack-level switch. Each ToR switch needs upstream connectivity. Those rack-by-rack connections become part of a larger network architecture.

The mental model expands from one server, to one rack, to many racks, and then to the larger network that connects systems and services across the facility.

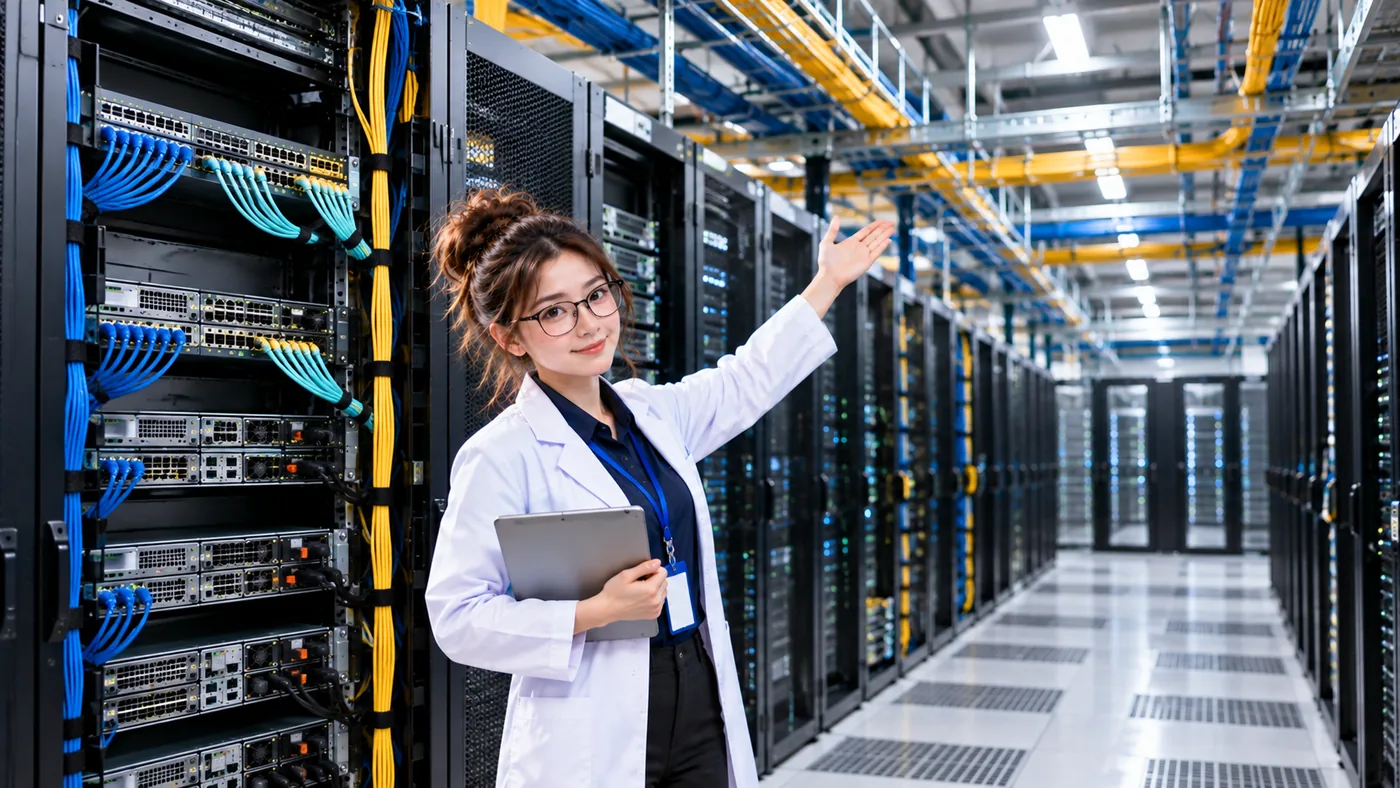

DataCenterTwin Nerd Girl presents organized server racks connected by network cabling across a data center aisle.
Repeatable rack-level connections help organize a larger facility, but every rack still depends on the upstream network path its design uses.

RACK 1

  1. Servers
  2. ToR 1
  3. Uplink(s)

RACK 2

  1. Servers
  2. ToR 2
  3. Uplink(s)

RACK 3

  1. Servers
  2. ToR 3
  3. Uplink(s)
UPSTREAM SWITCHING INFRASTRUCTURE
WIDER DATA-CENTER NETWORK
Three rack switches extend into shared upstream switching infrastructure. This simplified view does not prescribe one physical or logical topology.

THE NEXT ARCHITECTURE QUESTION

They connect into additional switching infrastructure that forms the larger data-center network fabric. Spine-leaf is one common modern architecture for connecting many rack or leaf switches through a wider set of switches.

Explore how that architecture connects racks in Network 101 Lesson 04. For now, remember that the ToR switch is one layer in a larger path—not the final destination.

NETWORK 101 · LESSON 04What Is Spine-Leaf Architecture? →

TRACE SERVICE DEPENDENCIES

A healthy server can still lose network connectivity

A server may have power, healthy compute, a working NIC, and a healthy local cable—but still lose required service connectivity if its only ToR switch fails or its required upstream path disappears. The actual impact depends on the network design, alternate paths, configuration, and application architecture.

Follow every step and ask what depends on it. What happens to the service if this switch or path disappears?

  1. SERVER✓ HEALTHY
  2. NIC✓ HEALTHY
  3. LOCAL LINK✓ HEALTHY
  4. ToR SWITCH✓ HEALTHY
  5. UPLINK! FAILED
  6. UPSTREAM CONNECTIVITY! IMPACTED
Example only: if the required uplink fails and there is no usable alternate path, remote connectivity may be lost even though local equipment remains healthy.

A PREVIEW OF NETWORK REDUNDANCY

More than one path can help—but trace both

Some designs connect a server over Path A to Switch A and over Path B to Switch B. Multiple paths can provide another route, but two paths do not automatically mean two independent paths. They may still share upstream equipment, cabling routes, power, or other dependencies.

  1. SERVER NIC / PATH A
  2. SWITCH A
  3. UPSTREAM PATH A
  1. SERVER NIC / PATH B
  2. SWITCH B
  3. UPSTREAM PATH B
Two example paths. Their independence depends on the complete design and shared dependencies. Power 101 explored the same question for A/B electrical paths.

We’ll examine network paths and resilience in Network 101 Lesson 05. Before that, Lesson 04 builds the picture of how many rack switches connect into a fabric.

THREE THINGS TO REMEMBER

Carry this mental model forward

  1. A Top-of-Rack switch connects servers in a rack toward the wider network.
  2. Server-facing links connect local equipment; uplinks connect the rack switch upstream.
  3. A healthy server can still lose service connectivity if its ToR or required upstream path fails.
