01 / THE RETURN-AIR QUESTION
Meet the cooling unit

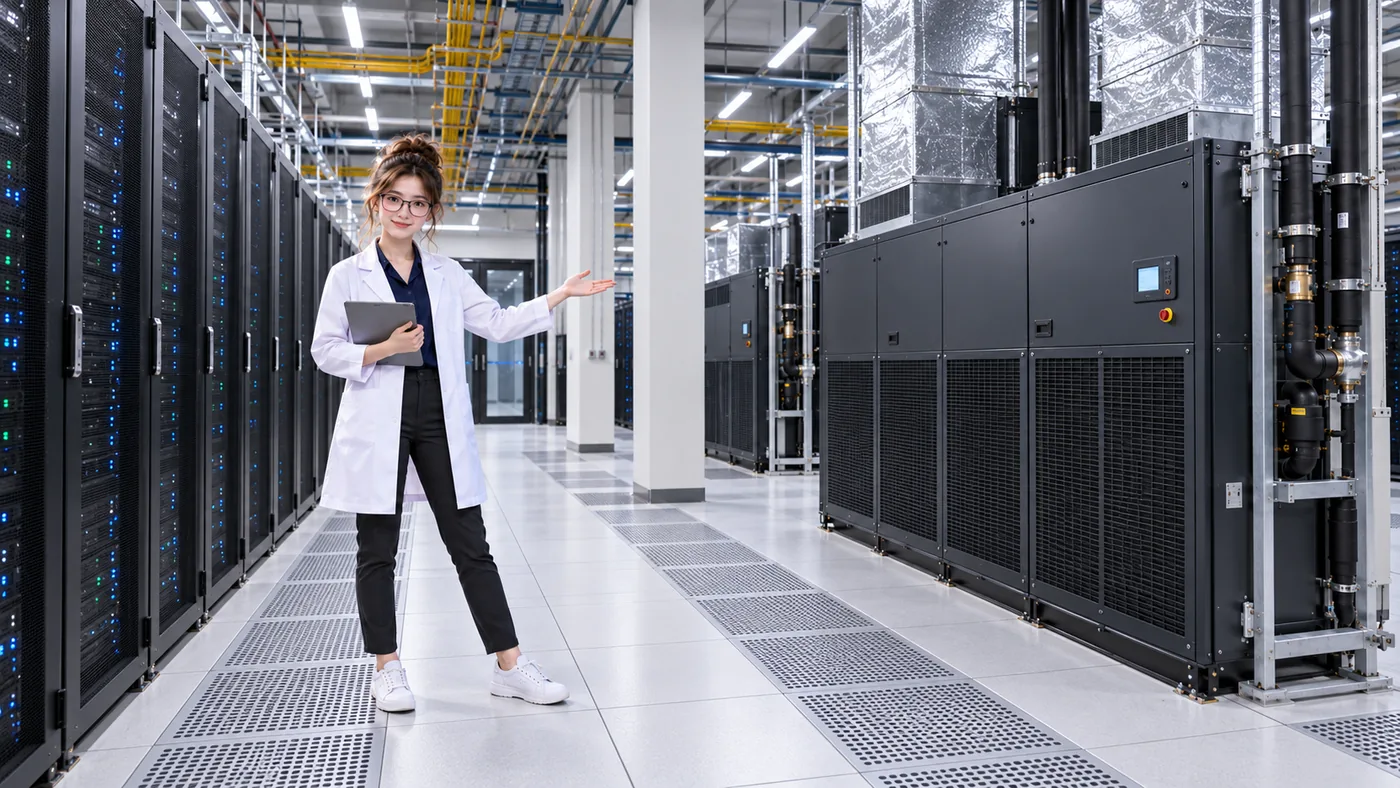

Servers take in cooler supply air and exhaust warmer air. Dedicated precision cooling equipment receives some of that return air, removes heat, then sends conditioned air back toward the data hall. Facilities use different cooling architectures to do this, so it helps to understand the names before assigning one to every unit.
CRAC · AIR CONDITIONER
What is a CRAC?
CRAC means Computer Room Air Conditioner. A CRAC is a precision cooling system commonly associated with direct-expansion (DX), refrigerant-based cooling. It removes heat from room air and transfers it through a refrigeration system. CRAC products come in multiple configurations, so the refrigeration and heat-rejection hardware is not identical in every installation.
- Warm return air
- CRAC
- DX / refrigerant cooling
- Cooler supply air
CRAH · AIR HANDLER
What is a CRAH?
CRAH means Computer Room Air Handler. A CRAH handles the data-hall air and is commonly associated with a chilled-water coil. Warm return air passes over the coil; chilled water absorbs heat and returns to a facility cooling source, often a chiller plant. The air handler then supplies cooler air back toward the room. This lesson stops at the facility cooling connection rather than unpacking the plant.
- Warm return air
- CRAH coil
- Chilled water absorbs heat
- Cooler supply air
02 / TWO COMMON COOLING ARCHITECTURES
CRAC vs CRAH
Both handle air and help remove heat from the data hall. The beginner-level distinction is what the air transfers its heat to: a DX/refrigerant system in a common CRAC approach, or a chilled-water coil in a common CRAH approach. Industry terminology and real products vary, so treat these as typical patterns, not universal product rules.
CRAC
- Full name
- Computer Room Air Conditioner
- Common approach
- Direct expansion / refrigerant-based refrigeration
- Heat-transfer context
- Air → refrigerant system
- Facility dependency
- Refrigeration and heat-rejection infrastructure
CRAH
- Full name
- Computer Room Air Handler
- Common approach
- Chilled-water air handling
- Heat-transfer context
- Air → chilled-water coil
- Facility dependency
- Chilled-water plant or another chilled-water source
AIR STILL HAS TO MOVE
Fans connect cooling capacity to the racks
Fans move air through the cooling equipment and across the room. A unit can have cooling capacity, but that alone does not ensure enough conditioned air reaches each server intake or that warm exhaust finds its way back to the unit. Airflow delivery and heat removal work together; that is why the next lesson turns to airflow and containment.
03 / FOLLOW THE AIR, THEN THE HEAT
The complete air-cooling loop
The cooling unit sends conditioned supply air toward the cold aisle. Servers draw that air through their intakes and exhaust warmer air toward the hot aisle. Return air then travels back to the cooling unit, completing the room-air loop.
- CRAC / CRAH
- Supply air
- Cold aisle
- Server intake
- Hot aisle
- Warm return air → CRAC / CRAH
COOLING = MOVING HEAT
Where does the heat go?
Heat does not disappear inside the unit. IT equipment transfers heat to the air; the cooling equipment transfers it into a refrigerant system or chilled water; a larger facility cooling and heat-rejection system carries it away from the IT environment.
- IT equipment
- Room air
- CRAC / CRAH
- Facility cooling and heat rejection
- Outside the IT environment
DESIGN DEPENDS ON THE FACILITY
Which one is better?
There is no universal winner. Facility scale, load density, cooling architecture, efficiency goals, redundancy, available utilities, maintenance strategy, climate, and operational needs all shape a suitable design. The useful question is how the complete system serves this facility—not which acronym is always superior.
THINK ABOUT THE SYSTEM
What if a cooling unit becomes unavailable?
IT may keep producing heat while the cooling available to an area decreases. Its temperature may rise, and service could eventually be affected. The outcome depends on the remaining system and facility conditions; cooling redundancy is a later topic in this journey.
- IT load continues
- Heat continues
- Available cooling decreases
- Temperature may rise
- Service may be impacted
THREE THINGS TO REMEMBER
The cooling-unit mental model
- Both CRAC and CRAH remove heat from data-center air.
- CRAC is commonly associated with DX/refrigerant cooling; CRAH commonly uses chilled water.
- Cooling equipment depends on airflow: supply air must reach server intakes and warm air must return efficiently.
PUT COOLING INTO PRACTICE
See airflow in the Air Cooling lab
In Air Cooling & Hot/Cold Aisles, inspect rack facing, compare airflow demand with CRAH delivery, adjust airflow or capacity, and try containment while working to reduce the worst server inlet temperature. The lab models CRAH and airflow concepts; it does not configure CRAC equipment or a chiller plant.
