01 / FIND THE LEAKING PATHS
Two ways useful airflow gets lost
Cooling depends on more than the unit: supply air needs to reach server intakes, and warmed exhaust needs a clear route back toward cooling. Bypass airflow happens when cool supply air reaches a return path without passing through the intended IT equipment.Recirculation happens when warmer exhaust finds its way back toward server intakes. Both can reduce cooling effectiveness and the thermal margin available to equipment.
Unfilled rack spaces, missing blanking panels, unsealed cable cutouts, poorly managed floor openings, and gaps around racks can create unintended paths. A gap is not automatically a serious problem; its effect depends on where it connects and the pressure difference across it.
FOLLOW THE AIR
Good flow reaches the servers; poor flow takes a shortcut
Read each path from left to right on a wide screen, or top to bottom on a phone. The words and arrows identify each route without depending on color.
Good flow · intended heat-removal path
- Supply air
- Server intake
- Server
- Warm exhaust
- Return
Poor flow · unintended shortcuts
- Supply air
- Bypass
- Return
- Warm exhaust
- Recirculation
- Server intake
SMALL FIXES, CLEARER PATHS
Blanking panels and sealing openings
Blanking panels close unused rack spaces so air is less likely to pass around equipment. Sealing cable cutouts and unnecessary rack gaps, managing floor openings, and choosing suitable perforated rack doors can also help preserve the intended route. A small opening can become an airflow path when fans and facility systems create a pressure difference, so follow the air rather than judging an opening by size alone.

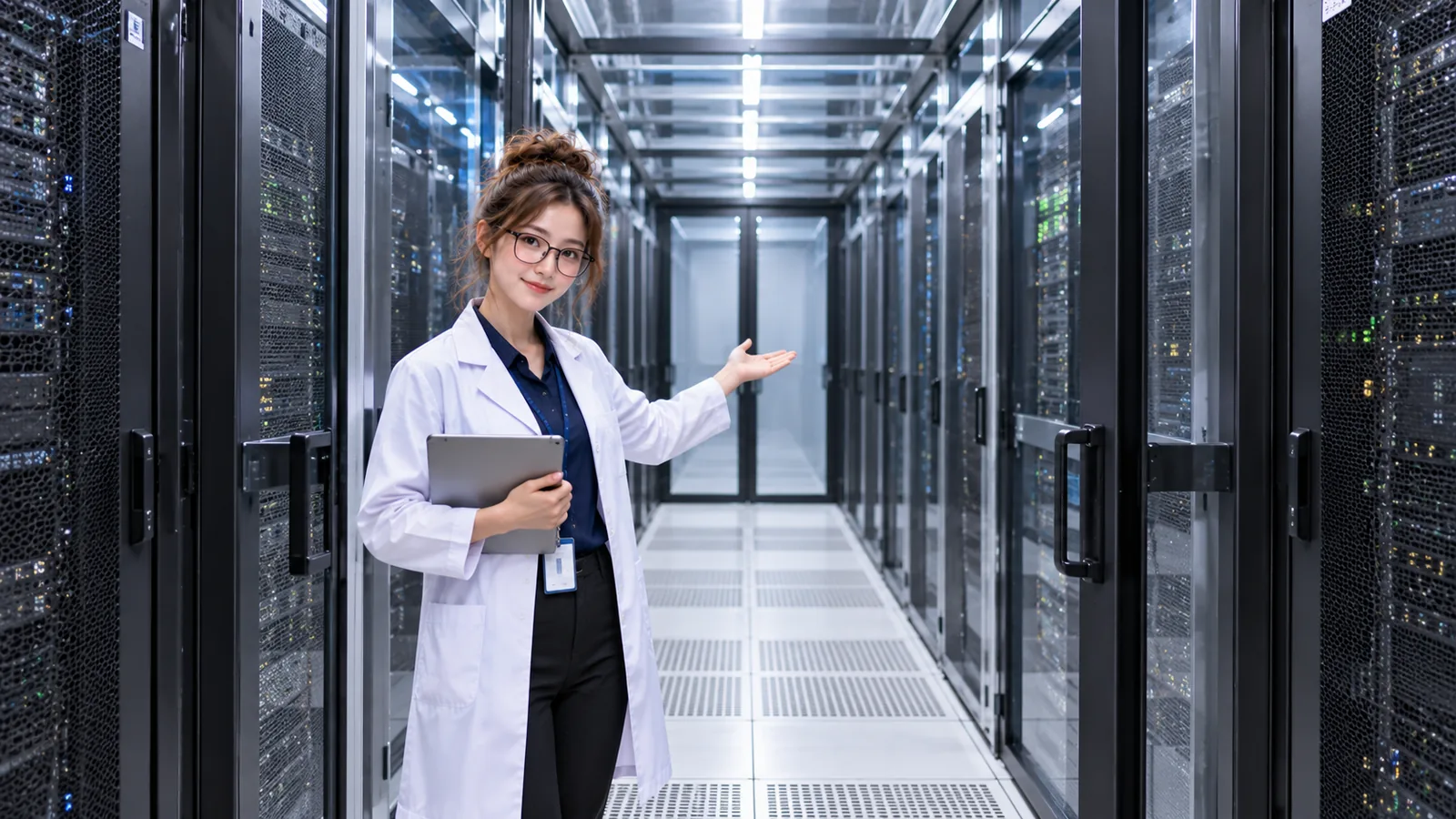

02 / CONTAIN THE SUPPLY SIDE
Cold-aisle containment keeps supply air near intakes
Cold-aisle containment physically separates the supply-air aisle from the surrounding room and return environment. Depending on the facility, doors, roof panels, end-of-row barriers, and sealed rack rows form that boundary. The goal is to keep supply air where server intakes need it and reduce unwanted mixing. Containment manages airflow; it is not another cooling machine.
- Cooling supply
- Contained cold aisle
- Server intakes
- Servers
TWO COMMON STRATEGIES
Cold aisle or hot aisle?
Cold-aisle containment
- Contains
- The cooler supply-air side
- Goal
- Keep supply air separated and available to server intakes.
Hot-aisle containment
- Contains
- The warmer exhaust-air side
- Goal
- Keep exhaust separated and guide it toward the cooling return.
Facilities may use cold-aisle containment, hot-aisle containment, or another managed-return approach. There is no universal winner; the right strategy fits the facility design.

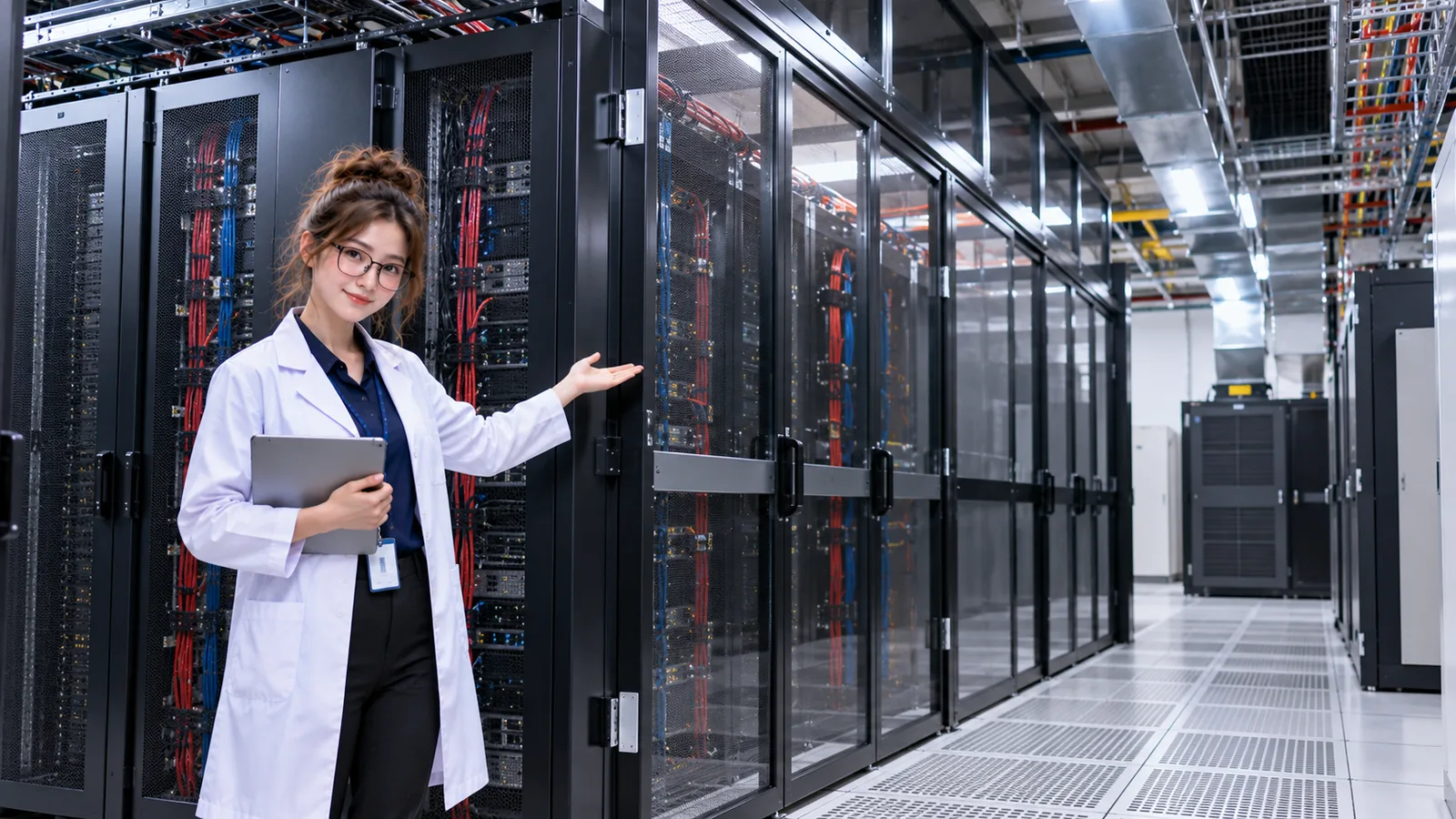

03 / GUIDE THE WARM RETURN
Hot-aisle containment guides exhaust toward return
Hot-aisle containment separates warmer server exhaust from the supply side and guides it toward the cooling return path. This managed return helps keep exhaust from mixing back into the air supplied to server intakes. Some facilities contain the hot aisle; others contain the cold aisle or use a different return arrangement. They do not need to install both containment types together.
- Server exhaust
- Contained hot aisle
- Managed return
- Cooling system
THE WHOLE PATH · BEGINNING TO END
The managed airflow loop
Air moves through a connected path: supply, server, warm return, then back to the cooling unit.
- Cooling unit
- Supply air
- Cold side / containment
- Server intake
- Server
- Warm exhaust
- Hot side / containment
- Return path
- Cooling unit
Fans create pressure differences that move air through the facility. Containment changes the path and pressure relationships; air still follows the paths available to it. That is why unintended openings matter.
AIRFLOW IS NOT CAPACITY
Containment cannot create cooling capacity
Containment can help an existing cooling system use its airflow and heat-removal capacity more effectively. But it cannot make an undersized system remove more heat than it can handle.
IT heat load > available heat-removal capacityAirflow organization alone cannot close this capacity deficit.
That is the next systems question: what happens when the IT heat load exceeds available cooling, or a cooling unit fails? Continue with Cooling Capacity & Failure · Lesson 05.
DIAGNOSE THE PATH
Healthy equipment can still deliver cooling poorly
A CRAH may be healthy, capacity may be available, and servers may be healthy while the airflow path is poor. In that case, available cooling is not reaching the equipment effectively.
- Where does supply air actually go?
- Where does exhaust air actually go?
- Is warm air recirculating?
- Are there bypass paths?
- Are rack openings managed appropriately?
THREE THINGS TO REMEMBER
Keep the full path in mind
- Cooling capacity is useful only when airflow reaches the intended equipment.
- Bypass airflow and recirculation reduce cooling effectiveness and thermal margin.
- Containment separates supply and return airflow paths, but does not create cooling capacity.
PUT THE AIR PATH IN CONTEXT
Now Fix the Airflow in DataCenterTwin
In the Air Cooling & Hot/Cold Aisles lab, inspect rack facing, compare airflow demand with CRAH delivery, adjust airflow or capacity, and try containment while reducing the worst server inlet temperature.
