START WITH THE LOAD
Can available cooling keep up with IT heat?
Operating IT equipment converts electrical power into heat. Cooling has to carry that heat away. As a first check, compare the IT heat load with the cooling capacity actually available now. This simplified comparison assumes airflow and distribution can deliver that cooling where it is needed.
IT heat load ≤ available cooling capacityThe margin matters too: a system with little spare capacity has less room for change.
- Capacity > loadMargin available
- Capacity ≈ loadLittle remaining margin
- Capacity < loadHeat-removal deficit
- IT heat load
- Heat generated by operating IT equipment.
- Installed cooling capacity
- Total nominal cooling capability installed.
- Available cooling capacity
- Cooling capacity usable under the current operating condition.
01 / NORMAL OPERATION
Compare load with available capacity
In this simple example, three cooling units provide 100 kW each. Together they represent 300 kW of installed capacity. With 220 kW of IT heat load and all three units available, the simplified remaining margin is 80 kW.
3 units × 100 kW each300 kW installed capacity
Available: 300 kWIT heat load: 220 kW
80 kWSimplified remaining margin
02 / REMOVE ONE RESOURCE
Installed capacity is not surviving capacity
Now assume one 100 kW unit becomes unavailable for a failure or maintenance. The other two units leave 200 kW of simplified surviving capacity. Against the same 220 kW IT heat load, that is a 20 kW deficit in this example—even though 300 kW remains installed.
200 kW remaining < 220 kW IT heat loadInstalled capacity: 300 kW · Surviving capacity: 200 kW
Normal
- Cooling Unit A — available
- Cooling Unit B — available
- Cooling Unit C — available
Total available: 300 kWIT load: 220 kW
Margin in this simplified example: 80 kW
Failure / maintenance
- Cooling Unit A — unavailable
- Cooling Unit B — available
- Cooling Unit C — available
Remaining: 200 kWIT load: 220 kW
Capacity deficit in this simplified example
Installed capacity ≠ surviving capacity. Resilience depends on what still works and can deliver useful cooling after a resource is lost.
REDUNDANCY · A FIRST LOOK
What do N and N+1 mean?
N is the capacity required to support the intended load.N+1 means that required capacity plus one additional unit or component at the defined level.
Required capacity: 200 kWAt 100 kW per unit, 2 units = N
One extra 100 kW unit3 units = N+1 at this defined unit level
The label N+1 alone does not prove thermal resilience. Remaining units must operate correctly, retain enough usable capacity, reach the required area, work with suitable airflow and distribution, and avoid shared dependencies that defeat the intended design.
03 / FOLLOW CAPACITY TO THE RACK
Enough capacity in the room may not be enough locally

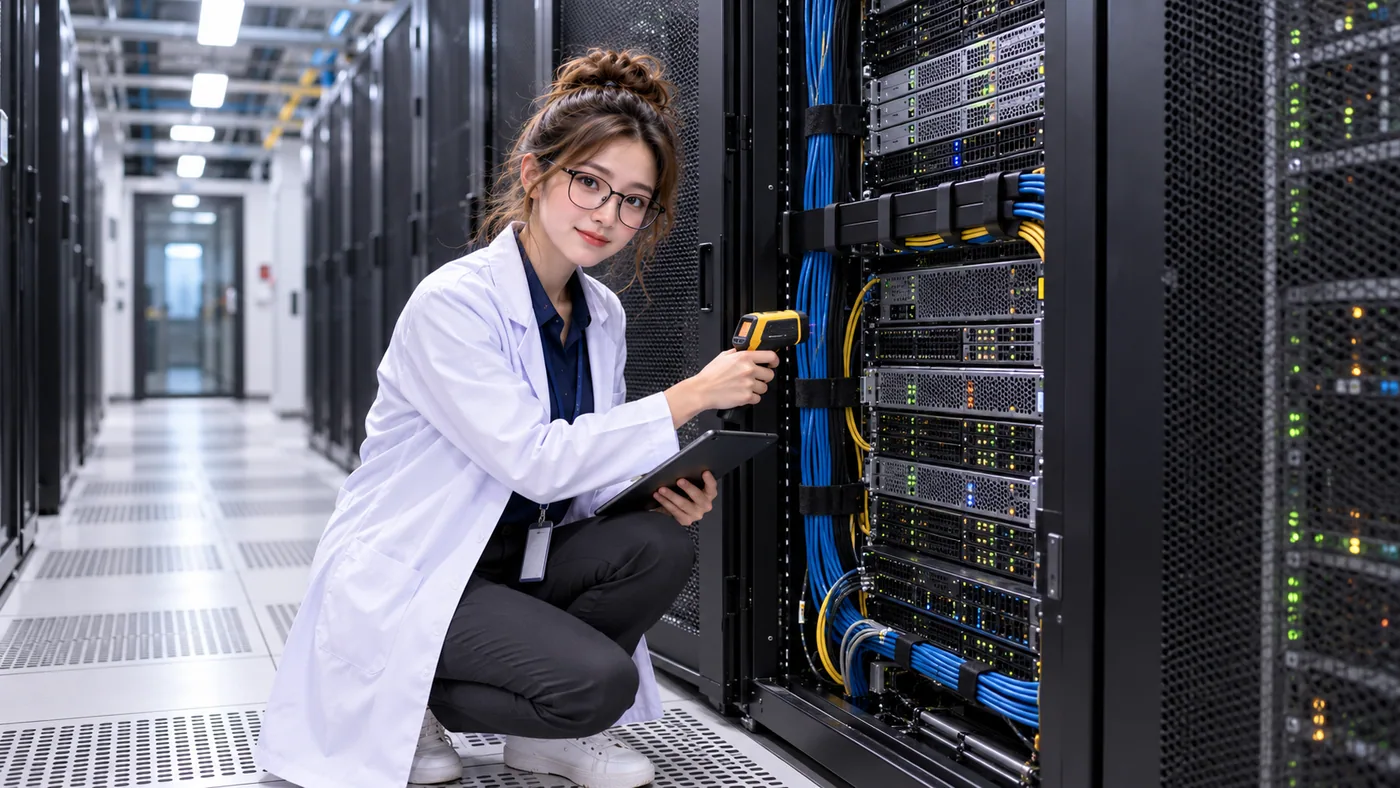

A data hall can have sufficient total cooling capacity while one rack or zone still faces poor thermal conditions. Cooling has to reach the right location, follow an effective airflow path, match rack density, and return effectively. Total capacity does not automatically mean local thermal safety.
Data hall total
Cooling capacitySufficient in this example
Rack / zone
Local heat loadHigh
Delivered coolingInsufficient
Possible hotspot / thermal constraintTotal-room capacity and local delivery are different questions.
A high-density rack can create a much larger local heat load than nearby racks. That can mean insufficient airflow, warmer inlet conditions, local recirculation, poor distribution, or reduced thermal margin. High density does not automatically mean overheating:local load must be matched by local heat-removal capability.
WHEN HEAT REMOVAL FALLS SHORT
Insufficient cooling can reduce thermal margin over time
When IT continues to operate, it continues to generate heat. If heat removal stays below heat generation, temperatures can rise and the available thermal margin can shrink.
- IT load continues
- Heat generation continues
- Heat removal is less than heat generation
- Temperature can rise
- Thermal margin shrinks
- Equipment may throttle or protect itself
- Service may eventually be affected
A cooling failure is not always an instant service failure. Power loss can affect equipment very quickly, while a cooling failure often creates a thermal process over time. The rate depends on IT load, room thermal mass, airflow, rack density, remaining cooling, containment, facility conditions, and equipment behavior. There is no single time-to-failure estimate that applies to every room.
CONNECT TO LESSON 04
Capacity and airflow have to work together
You can have enough cooling capacity on paper and still perform poorly if airflow delivers it badly. Likewise, perfect containment cannot compensate for fundamentally insufficient cooling capacity.
Capacity + distribution + airflowUseful thermal control · a beginner mental model, not an engineering equation
Review Airflow & Containment · Lesson 04 for the supply and return paths that help cooling reach the racks.
SYSTEMS THINKING
When a cooling unit fails, ask:
- What cooling capacity was lost?
- How much capacity remains?
- What is the current IT heat load?
- Is remaining capacity sufficient?
- Can that capacity reach the affected racks?
- Are there local hotspots?
- Are airflow and containment still working?
- Does the required service remain within acceptable conditions?
THREE THINGS TO REMEMBER
Keep the whole capacity question in view
- Compare cooling capacity with IT heat load; do not consider capacity in isolation.
- Installed capacity is not the same as surviving capacity after a failure.
- Room-level capacity can look sufficient while individual racks still face local thermal constraints.
PUT THE CAPACITY QUESTION IN CONTEXT
Now inspect cooling delivery in DataCenterTwin
The Air Cooling & Hot/Cold Aisles lab lets you compare rack airflow demand with CRAH delivery, adjust airflow or capacity, and inspect inlet temperatures. This is where to explore delivery and capacity together; it does not simulate the specific three-unit failure arithmetic in this article.
The N-1 Resilience lab covers its defined UPS/PDU loss cases. Cooling-resource N-1 is outside that lab’s current scope.
NEXT QUESTION · COOLING 101
What changes when rack density rises?
What happens when rack density becomes so high that moving enough air becomes increasingly difficult? The next topic isLiquid Cooling Basics. We will take up that question in Lesson 06.
