01 / MEET THE SERVER RACK
A frame that gives equipment a home
A server rack is a tall, sturdy frame or cabinet with standard mounting rails. Servers, switches, and other hardware attach to those rails so equipment can be arranged securely in a shared space.
The rack is not the server. A server is a computing device. The rack is the structure that holds servers and other equipment. Think of the rack as an apartment building: each device occupies its own space, and the rack keeps the whole group organized.
Data centers use standard rack dimensions so equipment from different makers can fit a predictable layout. That makes it easier to plan space, route cables, connect power, and reach equipment for service.
02 / WHAT GOES INSIDE?
Many devices, one organized space

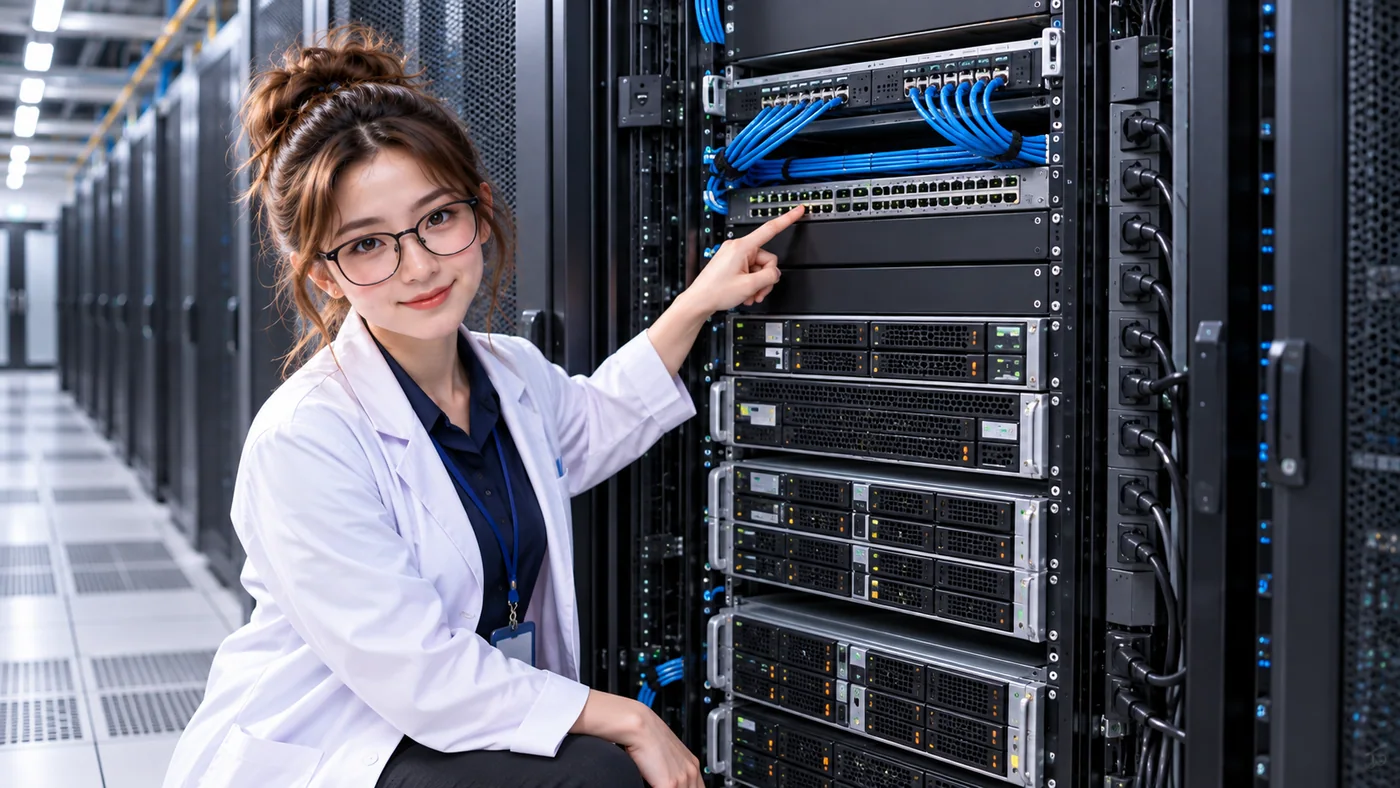

A rack can hold equipment for computing, networking, and power. The exact mix depends on what the data center needs.
- Rack-mounted servers
- Run applications and store or process data.
- Network switches
- Move data between servers and the wider network.
- Patch panels
- Provide organized connection points for network cables.
- PDU
- Distributes power to equipment mounted in the rack. Meet the PDU in Lesson 01 →
- Cable management
- Keeps power and network cables routed and easier to trace.
- Blanking panels
- Cover unused openings in some racks to help manage airflow.
The rack provides the mounting framework. Each device has its own job and connects to the systems it needs.
03 / UNDERSTAND RACK SPACE
What does “U” mean?
U means rack unit, a standard way to describe the height of rack-mounted equipment. 1U is 1.75 inches (44.45 mm) high. A 2U device occupies twice the vertical rack space of a 1U device.
- 1USwitch
- 1UServer
- 2UServerTwice the height of 1U
- 1UEmpty space
You may hear about a 42U rack, which offers space for equipment up to that combined height. Rack heights vary, so 42U is a common size rather than a rule for every data center.
04 / WHERE SYSTEMS MEET
One rack connects several systems
Devices in a rack depend on more than the frame around them. Three systems meet here:
PDU
A PDU distributes electrical power to the rack’s IT equipment. Read the PDU lesson →
Switches & cables
Switches and structured cabling connect servers to each other and to networks.
Airflow
Servers use power and produce heat, so the room must carry heat away from the rack.
05 / FROM ONE RACK TO A DATA CENTER
Racks work together in rows and aisles

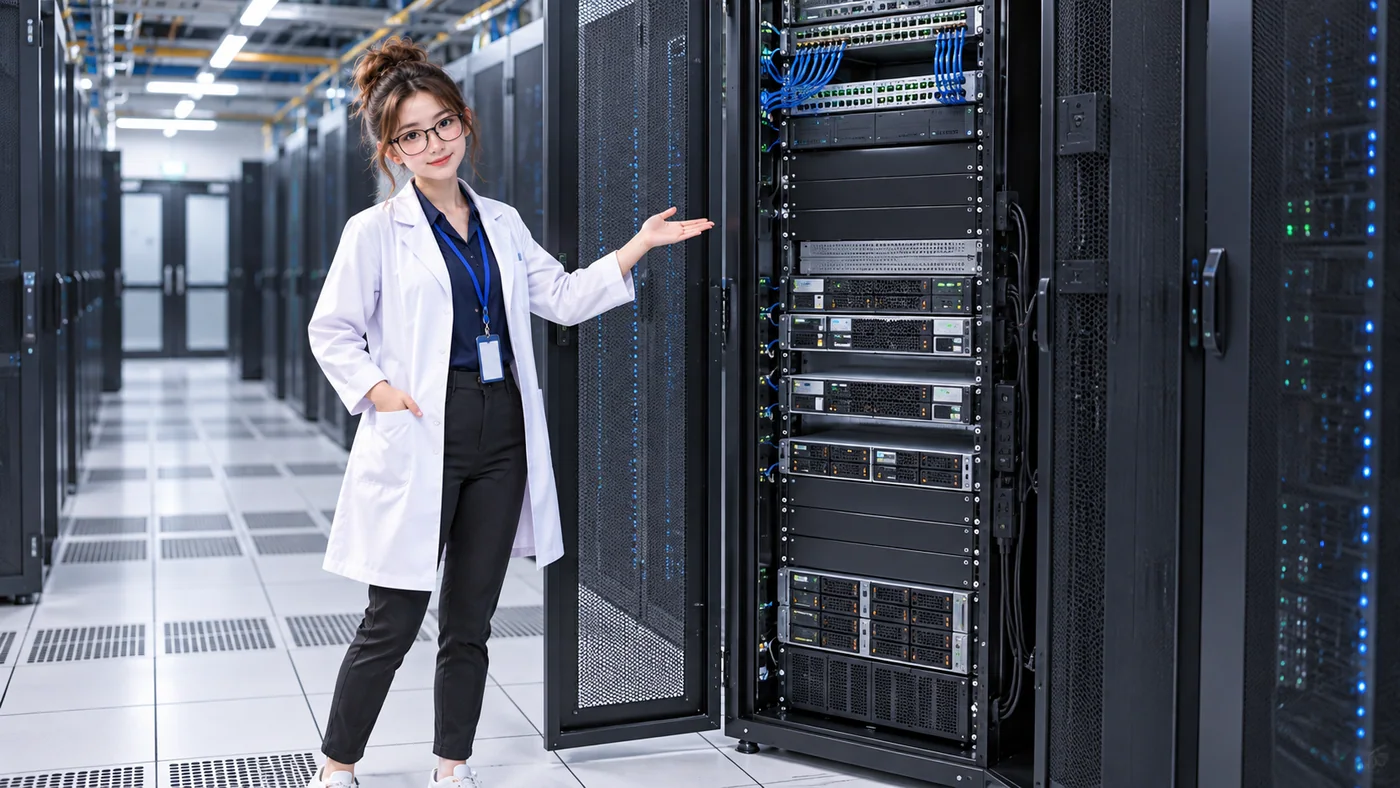

One rack organizes a group of devices. A data center can contain many racks arranged in rows with aisles between them. The larger layout gives teams paths to route structured cabling and distribute power, supports planned airflow, and leaves room to operate and service equipment.
Picture the scale growing: server → rack → rack row → data center. The same planning questions repeat as the system grows: where power comes from, where network connections run, how heat leaves, and how people can reach the equipment.
A QUICK COMPARISON
Server rack vs. server
Server rack
- Physical frame or cabinet
- Holds multiple devices
- Organizes and supports equipment
- Provides mounting rails
Server
- A computing device
- Contains processors, memory, and storage
- Runs computing workloads
- Can be mounted inside a rack
The rack holds the servers; it does not perform their computing work.
06 / FOLLOW POWER TO THE DEVICES
How power reaches equipment in a rack
The rack organizes equipment but does not create electricity. In a simplified view, power comes from the upstream electrical system to a PDU, then the PDU distributes it to the rack-mounted devices.
- Upstream electrical system
- PDU
- Rack-mounted equipment
That PDU may be mounted inside the rack. Return to the PDU beginner lesson to see how it distributes power and where it fits in the larger path.
07 / A FIRST LOOK AT AIRFLOW
Equipment needs a path for heat
Servers use electricity and give off heat. Many rack-mounted servers draw cooler air through an inlet, move it across internal components, and send warmer air out through an exhaust.
Rack placement and aisle layout affect how air reaches equipment and carries heat away. We’ll explore airflow more in the air-cooling engineering relationship; hot-aisle and cold-aisle arrangements are a topic for a future beginner lesson.
KEEP THESE IN MIND
Three things to remember
- The rack is the structure, not the server. Servers and other devices mount inside it.
- Equipment height is commonly measured in U. 1U equals 1.75 inches (44.45 mm).
- Power, network, and cooling meet at the rack. Equipment needs all three to operate.
NOW BUILD A RACK IN DATACENTERTWIN
Put a rack into the power path
In Build Your First Data Center, you start with an empty room and build a powered, cooled four-rack facility. Connect the utility, UPS, PDU, and racks, then check that the equipment has power and cooling.
