01 / MEET THE PDU
A power hub inside the rack
PDU means Power Distribution Unit. In a data center, a rack PDU is usually mounted vertically along the inside or rear edge of a server rack. It gives many devices a place to connect to the rack’s electrical supply.
Servers need a reliable connection to power. A PDU organizes that connection and distributes power across several pieces of equipment. It is built for a rack environment, where many devices share a compact space.
Think of it as the rack’s power hub: it receives power from the facility’s electrical system and provides outlets for the equipment in that rack.
02 / POWER TO MANY DEVICES
What does a PDU actually do?

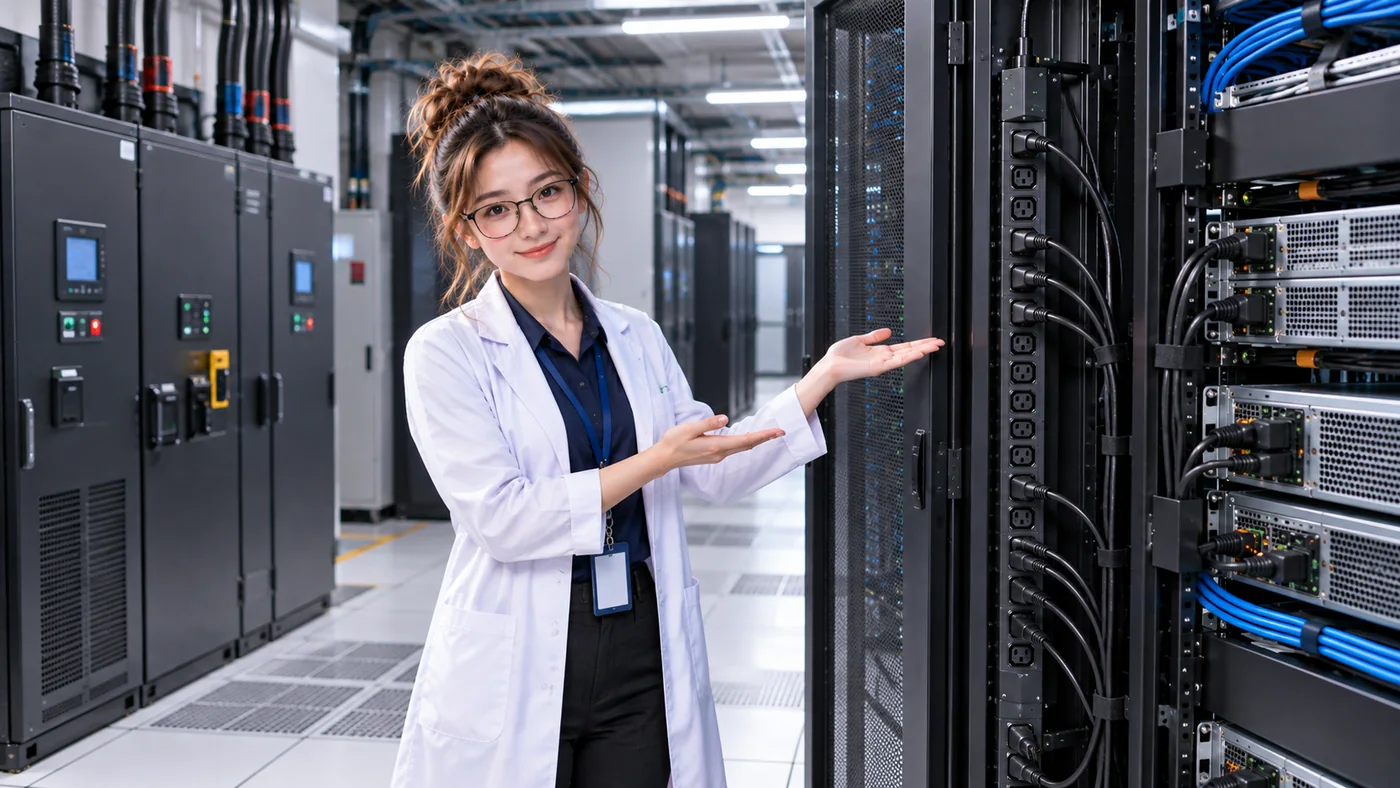

Power arrives at the rack from upstream electrical equipment. The PDU makes that power available at multiple outlets, and each outlet can connect to a server or another IT device.
Some PDUs simply distribute power. More advanced, intelligent models can measure or report how much power is being used. Depending on the model, they may also let an operator monitor or control individual outlets.
03 / FOLLOW THE POWER
Where does the PDU sit in the power chain?

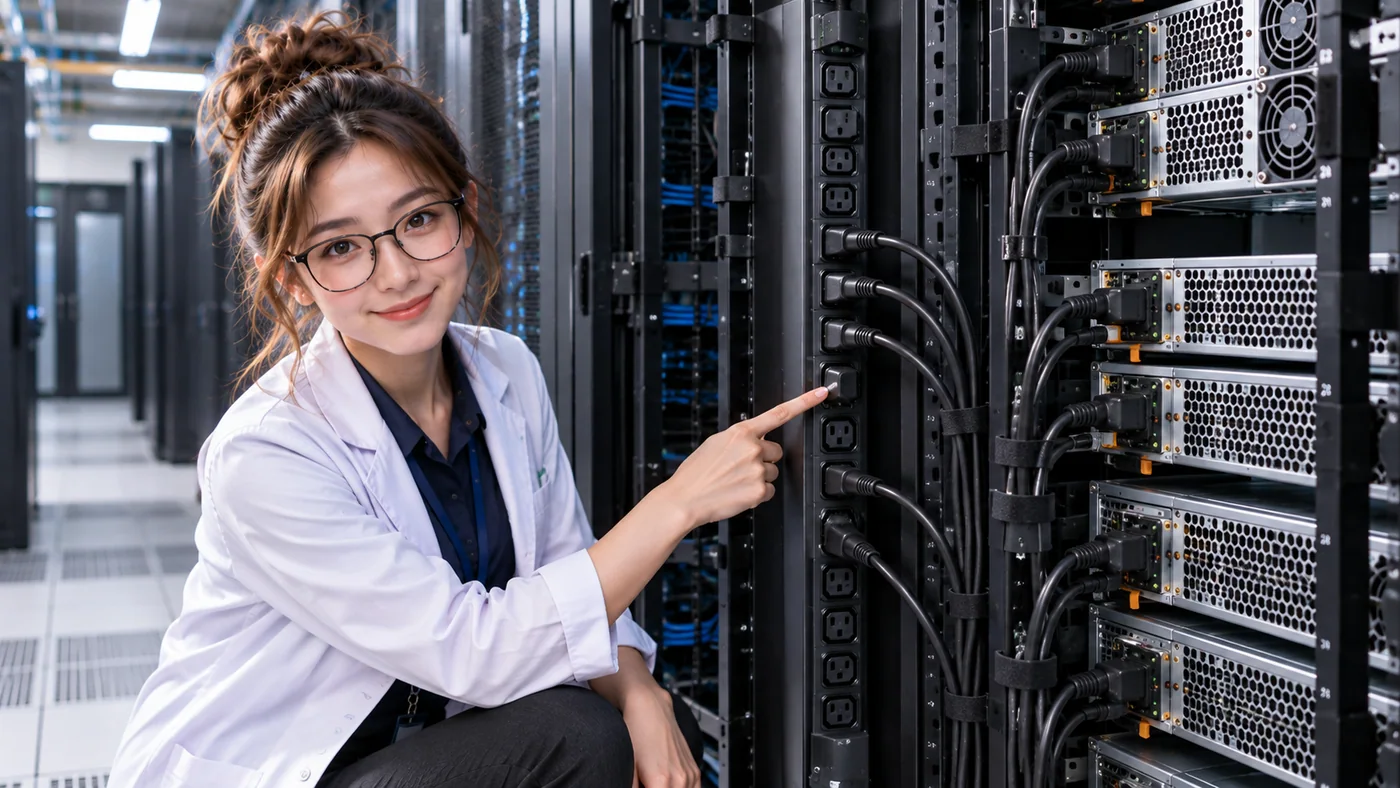

The PDU is one of the final distribution stages between the facility’s electrical infrastructure and the IT equipment. Here is a simplified path to help you picture its place:
- Utility / Grid
- Switchgear
- UPS
- PDU
- Server Rack
- Servers
Real data centers can have more equipment and more than one power path. This sequence is a beginner’s map, not a rule that every facility follows.
The key idea: a PDU distributes power close to the IT equipment, as one part of a larger system.
A QUICK COMPARISON
A rack PDU and a household power strip
They both provide multiple outlets, but rack PDUs are designed for IT equipment and rack installation. Features vary by model.
Household power strip
Made for everyday devices and general-purpose use around a home or office.
Rack PDU
Designed to mount in a rack and organize power for denser IT equipment. Depending on the model, it may add metering, monitoring, remote management, or outlet control to suit data center operating needs.
A FIRST LOOK AT REDUNDANCY
Why might a rack have PDU A and PDU B?
Some critical servers have two power supplies. One can connect to power path A and the other to path B:
Power Path APDU A → Server PSU A
Power Path BPDU B → Server PSU B
If one path fails, the other may keep the server powered when the paths are independent and the surviving path has enough capacity. Two PDUs alone do not prove that the paths are independent. Explore the full idea in A/B Power Redundancy.
KEEP THESE IN MIND
Three things to remember
- A PDU distributes power. It does not generate electricity.
- A PDU is part of a larger electrical path. It connects the upstream supply to rack equipment.
- Two PDUs do not automatically mean resilience. Redundancy depends on genuinely independent paths and enough remaining capacity.
NOW TRY IT IN DATACENTERTWIN
Build the power path you just learned about
You know what a PDU does and where it fits. In the interactive lab, build a small facility and connect its equipment. Then follow the power path and see how the design responds to a failure.
